Steel Pipe Shot Blasting Machine, Surface Cleaning
Key Specifications / Features
Model No.: JX-RCS-05 Hits: 187
Steel Pipe Shot Blasting Machine Manufacturer JX Offers Shot Blasting Machine For Tubes, Surface Cleaning, Anti-erosion Treatment For Steel Surface.
Request a quoteTags:
Detail Infomation
Characteristics
Description

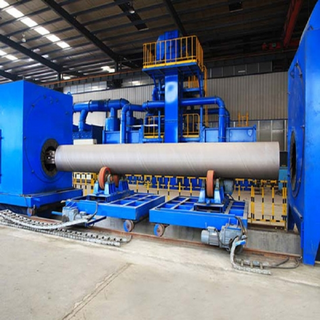

Steel Pipe Shot Blasting Cleaning Machines are designed for the large, middle and small calibre size of the steel tube(outer and inner) and the cylinder. Impeller head locate at multi angle, This Steel Pipe Shot Blasting Machine is the high efficiency blasting wheels, shot blasting with high-speed thick blasting pills and blowing on the surface.They can clean the oxides, rusts, eroded layer and other foreign matters on the surface of the steel pipes, so that steel material will pappear its original luser, and this will be helpful to steel surface anti-erosion treatment.
Application
1. Remove the scales and weld dregs
2. Make it show metal color
3. Increase its ratio surface and weld dregs
4. Increase its ratio surface area
5. Thus contribute to painting and coating
6. Enhance the corrosion resistance of the machine and metal section.
7. Enhance the steel's fatigue resistance, extend the service life.
8. Optimize the technology of the steel surface
9. Achieve the complete clean-up purpose.
Details
Technical Parameters
This machine is not a standard machine, any parameters can be customized according clients’ requirements, so any further information please contact with us, our skilled engineer team will give you the most professional and cost-effective solutions.
| High efficiency blasting wheels | High-speed thick blasting pills |
Description
Steel Pipe Shot Blasting Cleaning Machines are designed for the large, middle and small calibre size of the steel tube(outer and inner) and the cylinder. Impeller head locate at multi angle, This Steel Pipe Shot Blasting Machine is the high efficiency blasting wheels, shot blasting with high-speed thick blasting pills and blowing on the surface.They can clean the oxides, rusts, eroded layer and other foreign matters on the surface of the steel pipes, so that steel material will pappear its original luser, and this will be helpful to steel surface anti-erosion treatment.
Application
1. Remove the scales and weld dregs
2. Make it show metal color
3. Increase its ratio surface and weld dregs
4. Increase its ratio surface area
5. Thus contribute to painting and coating
6. Enhance the corrosion resistance of the machine and metal section.
7. Enhance the steel's fatigue resistance, extend the service life.
8. Optimize the technology of the steel surface
9. Achieve the complete clean-up purpose.
Details
Technical Parameters
| Steel Pipe Inner & Outer Shot Blasting Cleaning Machines | ||||||
| Model | DX10 | DX15 | DX20 | DX25 | DX30 | DX140 |
| Work piece size(mm) | 30*100 | 50*150 | 50*200 | 50*250 | 50*300 | 150*1400 |
| Shot capacity(kg) | 2*250 | 2*250 | 2*250 | 2*250 | 2*1000 | 2*1000 |
| Elevating capacity(kg) | 30000 | 30000 | 30000 | 30000 | 30000 | 1200000 |
| Separating capacity(kg) | 30000 | 30000 | 30000 | 30000 | 30000 | 1200000 |
| Air volume(m/h) | 5000 | 5000 | 5000 | 6000 | 6000 | 10000 |
| Power(kw) | 50 | 50 | 50 | 50 | 50 | 115 |
